Intelligentized Paper Mill Conveyor Systems
العلامة التجارية :Newkuani
المنتج المصدر :China
التسليم في الوقت المحدد :20days
القدرة على التوريد :100sets/month
The combination of the chain conveyor and the paper roll rotation conveyor can flexibly transport the paper roll to the required position, and has a high efficiency, which greatly reduces the labor intensity and increases the flexibility of the entire paper roll conveyor system.
Paper Roll Feeding-out System
1) Main parameter
l Construction：Paper Roll Chain Conveyor(A), Pneumatic Paper Roll Centering Device, Pneumatic Paper Roll Kicking Device
l Structure: by more than a v-shaped plate chain, sprocket drive gear and rack and pneumatic about playing paper; The Angle of v-shaped plate chain is 170 degrees and the width is 250mm
l Chain speed: Max30 m/min, the inverter speed regulation, can be positive &negative
l Sprocket materials: 45 steel, quenched and tempered after quenching treatment,
l Deceleration motor gear oil for ISO VG220 oil
l Bearing for FK brands, rack by draw out type plus butter, easy to maintain

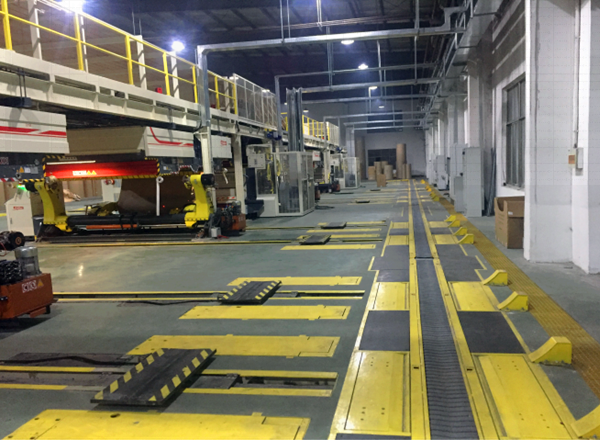

2) Outline picture
